Math

Dot

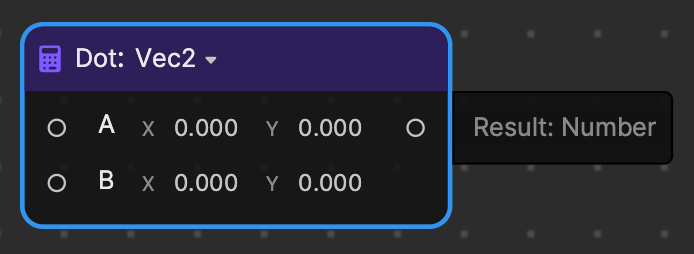

Use Dot to calculate the dot product between two vectors. For example, the dot product of vector A [1, -3, -2] and B [5, -1, 1] is:[1, -3, -2] · [5, -1, 1] = (1 x 5) + (-3 x -1) + (-2 x 1) = 6Supported types: Vec2, Vec3, and Vec4. Dot is in the Math category.

Input

NameData typeDescription
AVec4The first vector
BVec4The second vector

Output

NameData typeDescription
ResultFloatThe result of the dot product

Example

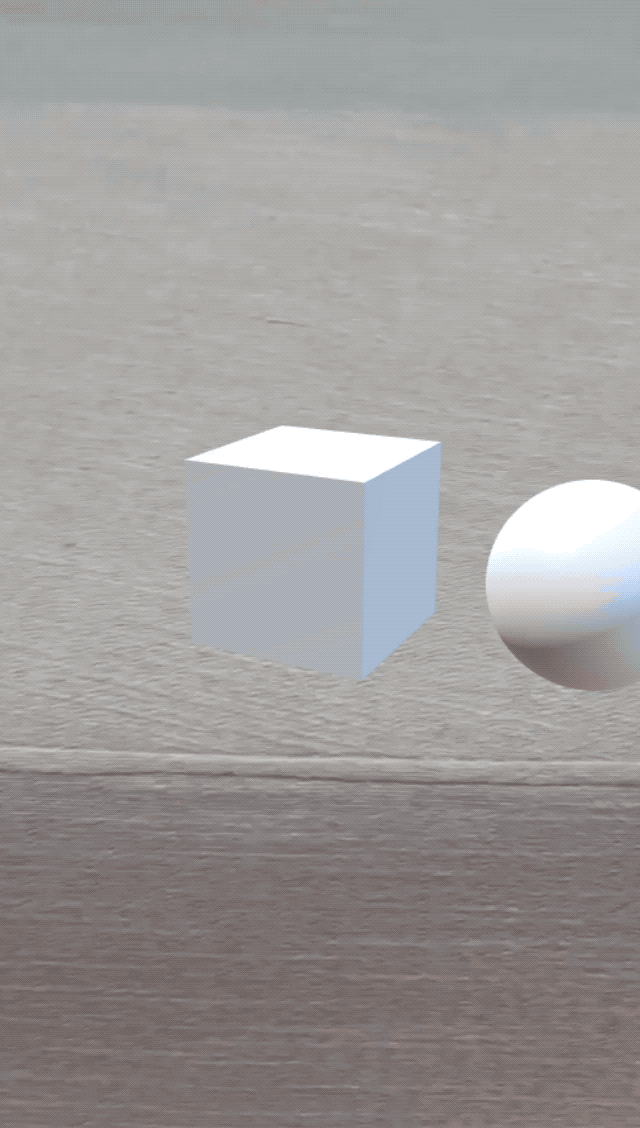

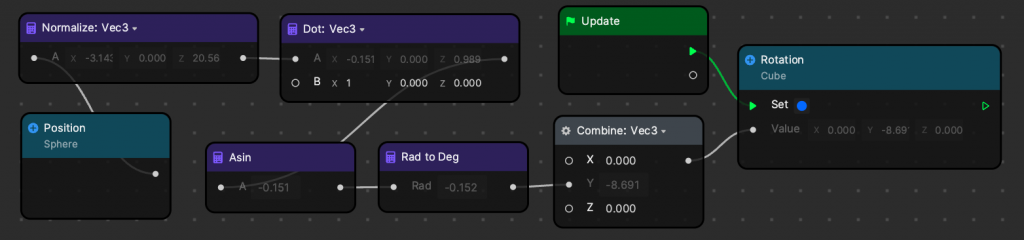

In this example, the cube’s rotation is controlled by the position of the sphere. We use vector to calculate the angle between sphere position and unit vector along X-Axis. Then we apply this angle for the cube’s rotation.
