Events & Input: Gesture Lab

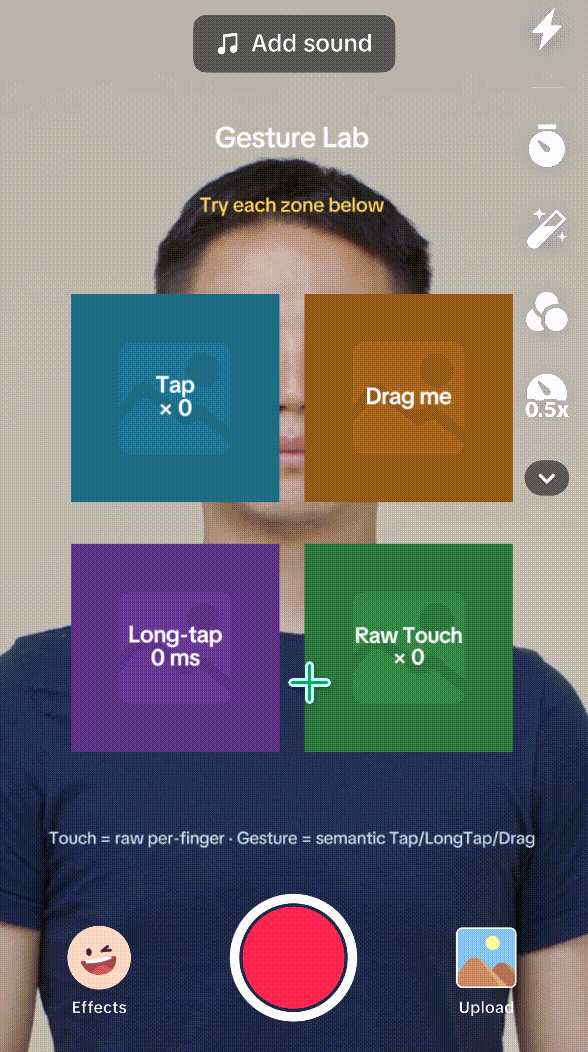

A 2 × 2 grid of input zones, each demonstrating a distinct event pattern. The cyan TapZone counts GestureType.Tap events; the orange DragZone follows your finger via GestureType.Drag and snaps back on GestureType.Drop; the purple HoldZone reports GestureType.LongTap duration and fires throttled HapticsModule.triggerVibration while held; the green RawZone counts raw EventType.Touch Began events. A status line at the top mirrors the most recent event so you can read which emitter fired and on which zone.

What you'll build

• Four 250 × 250 colored Screen Image "zones" — each parents a 2D Text child label that displays the zone's running state (count, ms, etc.).
• A StatusText at the top that mirrors the most recent input event (Touch.Began, GestureType.Tap, LongTap, Drag start, Drop).
• A GameController empty SceneObject hosting GestureLab — one script that subscribes to two separate emitters:
  • EventManager.getGlobalEmitter() for raw Touch events.
  • EventManager.getGestureEmitter() for semantic Tap, LongTap, Drag, Drop gestures.
• A scale-bounce on the TapZone, an offset-tracking drag on the DragZone (with snap-back animation on Drop), throttled haptic vibration during a long-press, and a hit-tested raw Touch counter on the RawZone.

Touch vs Gesture — when to use which

The two emitters serve different needs and are easy to confuse:

Emitter	Fires for	Use it when
getGlobalEmitter() + EventType.Touch	Every raw finger phase: Began, Moved, Ended, Canceled. One event per phase per finger.	You need the precise per-frame finger data — drawing apps, multi-finger games, custom drag implementations, hit-testing buttons (with TouchUtils.isScreenPointOnImage).
getGestureEmitter() + GestureType.{Tap,LongTap,Drag,Drop}	Recognised gestures: Tap after a short press-release, LongTap while a press is sustained, Drag for each frame of a drag-in-progress, Drop on release after a drag.	You want semantic input — "did the user tap this thing?", "is this a long-press?". The engine handles the timing/movement thresholds for you.

The demo uses both side-by-side so you can see the difference. The RawZone counts Touch.Began events; the TapZone counts GestureType.Tap. A single quick press on the TapZone fires both — one Touch.Began (counted on RawZone if it's the rawZone, otherwise ignored by the script) plus one GestureType.Tap (counted on TapZone). A held press on the HoldZone fires many Touch.Moved events but only one GestureType.LongTap chain.

Open the demo

↓ gesture-lab.zip

Unzip and open in Effect House (5.9.0+). The opening scene contains:

• Camera — default 3D perspective camera, untouched.
• 2D Camera — auto-created by the first 2D Text.
• TitleText — "Gesture Lab" at the top.
• StatusText — yellow status line that mirrors the latest event.
• TapZone (cyan) at (-140, 150) with TapLabel child ("Tap × N").
• DragZone (orange) at (140, 150) with DragLabel child ("Drag me" / "Dragging").
• HoldZone (purple) at (-140, -150) with HoldLabel child ("Long-tap N ms").
• RawZone (green) at (140, -150) with RawLabel child ("Raw Touch × N").
• HintText at the bottom with a short usage hint.
• GameController — empty SceneObject hosting GestureLab.

Read the script

GestureLab.ts

@component()
export class GestureLab extends APJS.BasicScriptComponent {
  // Live status + zone references.
  @serializeProperty statusText!: APJS.SceneObject;
  @serializeProperty tapZone!: APJS.SceneObject;
  @serializeProperty tapLabel!: APJS.SceneObject;
  @serializeProperty dragZone!: APJS.SceneObject;
  @serializeProperty dragLabel!: APJS.SceneObject;
  @serializeProperty holdZone!: APJS.SceneObject;
  @serializeProperty holdLabel!: APJS.SceneObject;
  @serializeProperty rawZone!: APJS.SceneObject;
  @serializeProperty rawLabel!: APJS.SceneObject;

  // Tunables.
  @serializeProperty hapticDurationMs: number = 30;
  @serializeProperty hapticIntervalMs: number = 250; // throttle haptics during a hold

  // Component caches (resolved in lazy init).
  private statusComp!: APJS.Text;
  private tapImg!: APJS.Image;
  private dragImg!: APJS.Image;
  private holdImg!: APJS.Image;
  private rawImg!: APJS.Image;
  private tapLabelText!: APJS.Text;
  private dragLabelText!: APJS.Text;
  private holdLabelText!: APJS.Text;
  private rawLabelText!: APJS.Text;
  private tapST!: APJS.ScreenTransform;
  private dragST!: APJS.ScreenTransform;

  // Counters + state.
  private tapCount: number = 0;
  private rawCount: number = 0;
  private tapBouncePulse: number = 0;     // 0..1, decays with dt
  private dragOrigin!: APJS.Vector2f;     // resting anchored position of the DragZone
  private dragGrabbed: boolean = false;
  private dragStartNorm!: APJS.Vector2f;
  private dragStartAnchored!: APJS.Vector2f;
  private snapBackUntil: number = 0;       // elapsed time at which snap-back finishes
  private snapBackFrom!: APJS.Vector2f;
  private elapsed: number = 0;
  private lastHapticAt: number = -999;
  private inited: boolean = false;

  // Touch / gesture callback refs (so we can remove on destroy).
  private touchCallback!: (e: APJS.IEvent) => void;
  private tapGestureCallback!: (e: APJS.IEvent) => void;
  private longTapCallback!: (e: APJS.IEvent) => void;
  private dragCallback!: (e: APJS.IEvent) => void;
  private dropCallback!: (e: APJS.IEvent) => void;

  onUpdate(dt: number): void {
    if (!this.inited) {
      if (
        !this.statusText || !this.tapZone || !this.tapLabel ||
        !this.dragZone || !this.dragLabel || !this.holdZone ||
        !this.holdLabel || !this.rawZone || !this.rawLabel
      ) return;

      this.statusComp = this.statusText.getComponent("Text") as APJS.Text;
      this.tapImg = this.tapZone.getComponent("Image") as APJS.Image;
      this.dragImg = this.dragZone.getComponent("Image") as APJS.Image;
      this.holdImg = this.holdZone.getComponent("Image") as APJS.Image;
      this.rawImg = this.rawZone.getComponent("Image") as APJS.Image;
      this.tapLabelText = this.tapLabel.getComponent("Text") as APJS.Text;
      this.dragLabelText = this.dragLabel.getComponent("Text") as APJS.Text;
      this.holdLabelText = this.holdLabel.getComponent("Text") as APJS.Text;
      this.rawLabelText = this.rawLabel.getComponent("Text") as APJS.Text;
      this.tapST = this.tapZone.getComponent("ScreenTransform") as APJS.ScreenTransform;
      this.dragST = this.dragZone.getComponent("ScreenTransform") as APJS.ScreenTransform;

      // Snapshot the drag zone's resting position so Drop can snap it back.
      const o = this.dragST.anchoredPosition;
      this.dragOrigin = new APJS.Vector2f(o.x, o.y);

      this.subscribe();
      this.inited = true;
      console.log("[GestureLab] ready");
    }

    this.elapsed += dt;

    // Tap bounce decay: scale 1 + 0.2*pulse, lerp pulse to 0.
    if (this.tapBouncePulse > 0) {
      this.tapBouncePulse = Math.max(0, this.tapBouncePulse - dt * 4);
      const s = 1 + 0.2 * this.tapBouncePulse;
      this.tapST.scale = new APJS.Vector2f(s, s);
    }

    // Snap-back animation after Drop: lerp the drag zone back to its origin.
    if (this.snapBackUntil > this.elapsed) {
      const total = 0.25;
      const t = 1 - Math.max(0, (this.snapBackUntil - this.elapsed) / total);
      const k = Math.min(1, t);
      this.dragST.anchoredPosition = new APJS.Vector2f(
        this.snapBackFrom.x + (this.dragOrigin.x - this.snapBackFrom.x) * k,
        this.snapBackFrom.y + (this.dragOrigin.y - this.snapBackFrom.y) * k,
      );
    } else if (this.snapBackUntil > 0) {
      // Snap finished — freeze at origin and clear the marker.
      this.dragST.anchoredPosition = this.dragOrigin.clone();
      this.snapBackUntil = 0;
    }
  }

  onDestroy(): void {
    if (!this.inited) return;
    APJS.EventManager.getGlobalEmitter().off(APJS.EventType.Touch, this.touchCallback, this);
    const ge = APJS.EventManager.getGestureEmitter();
    ge.off(APJS.GestureType.Tap, this.tapGestureCallback, this);
    ge.off(APJS.GestureType.LongTap, this.longTapCallback, this);
    ge.off(APJS.GestureType.Drag, this.dragCallback, this);
    ge.off(APJS.GestureType.Drop, this.dropCallback, this);
  }

  private subscribe(): void {
    // Global emitter — raw Touch events. We count finger-down events on RawZone only.
    this.touchCallback = (event: APJS.IEvent) => {
      const t = event.args[0] as APJS.TouchData;
      if (t.phase !== APJS.TouchPhase.Began) return;
      if (!APJS.TouchUtils.isScreenPointOnImage(t.position, this.rawImg)) return;
      this.rawCount++;
      this.rawLabelText.text = "Raw Touch\n× " + this.rawCount;
      this.statusComp.text = "Touch.Began — raw count = " + this.rawCount;
    };
    APJS.EventManager.getGlobalEmitter().on(APJS.EventType.Touch, this.touchCallback, this);

    // Gesture emitter — semantic gestures (Tap / LongTap / Drag / Drop).
    const gesture = APJS.EventManager.getGestureEmitter();

    this.tapGestureCallback = (event: APJS.IEvent) => {
      const g = event.args[0] as APJS.GestureInfo;
      if (!APJS.TouchUtils.isScreenPointOnImage(g.endPoint, this.tapImg)) return;
      this.tapCount++;
      this.tapBouncePulse = 1; // triggers the scale-bounce in onUpdate
      this.tapLabelText.text = "Tap\n× " + this.tapCount;
      this.statusComp.text = "GestureType.Tap fired";
    };
    gesture.on(APJS.GestureType.Tap, this.tapGestureCallback, this);

    this.longTapCallback = (event: APJS.IEvent) => {
      const g = event.args[0] as APJS.GestureInfo;
      if (!APJS.TouchUtils.isScreenPointOnImage(g.endPoint, this.holdImg)) return;
      const ms = Math.round(g.duration);
      this.holdLabelText.text = "Long-tap\n" + ms + " ms";
      this.statusComp.text = "LongTap firing — " + ms + " ms";
      // Throttle haptics so a long hold doesn't continuously buzz.
      if (this.elapsed * 1000 - this.lastHapticAt > this.hapticIntervalMs) {
        APJS.HapticsModule.triggerVibration(this.hapticDurationMs, 0.7, 0.5);
        this.lastHapticAt = this.elapsed * 1000;
      }
    };
    gesture.on(APJS.GestureType.LongTap, this.longTapCallback, this);

    this.dragCallback = (event: APJS.IEvent) => {
      const g = event.args[0] as APJS.GestureInfo;
      if (g.firstTrigger) {
        // The drag has just started — only follow the finger if it began on DragZone.
        if (!APJS.TouchUtils.isScreenPointOnImage(g.startPoint, this.dragImg)) {
          this.dragGrabbed = false;
          return;
        }
        this.dragGrabbed = true;
        this.dragStartNorm = new APJS.Vector2f(g.startPoint.x, g.startPoint.y);
        const a = this.dragST.anchoredPosition;
        this.dragStartAnchored = new APJS.Vector2f(a.x, a.y);
        this.statusComp.text = "GestureType.Drag started";
      }
      if (!this.dragGrabbed) return;

      // Convert the normalized finger delta to anchored-position pixels.
      // ScreenTransform y-axis is up, gesture y-axis is down — flip.
      const dx = (g.endPoint.x - this.dragStartNorm.x) * 720;
      const dy = -(g.endPoint.y - this.dragStartNorm.y) * 1280;
      this.dragST.anchoredPosition = new APJS.Vector2f(
        this.dragStartAnchored.x + dx,
        this.dragStartAnchored.y + dy,
      );
      this.dragLabelText.text = "Dragging";
    };
    gesture.on(APJS.GestureType.Drag, this.dragCallback, this);

    this.dropCallback = (event: APJS.IEvent) => {
      if (!this.dragGrabbed) return;
      this.dragGrabbed = false;
      // Trigger the snap-back animation in onUpdate.
      const a = this.dragST.anchoredPosition;
      this.snapBackFrom = new APJS.Vector2f(a.x, a.y);
      this.snapBackUntil = this.elapsed + 0.25;
      this.dragLabelText.text = "Drag me";
      this.statusComp.text = "GestureType.Drop — snapping back";
    };
    gesture.on(APJS.GestureType.Drop, this.dropCallback, this);
  }
}

The Events-namespace calls of interest:

• APJS.EventManager.getGlobalEmitter() is the project-wide bus for raw Touch / RecordStart / RecordEnd events. Subscribe with .on(APJS.EventType.Touch, callback, this). The callback receives an IEvent whose args[0] is a TouchData.
• APJS.EventManager.getGestureEmitter() is a separate bus for recognised gestures. Subscribe with .on(APJS.GestureType.X, callback, this). The callback's args[0] is a GestureInfo.
• TouchData.phase is one of Began, Moved, Ended, Canceled. Filter on Began for "single press" mechanics; use Moved for drawing or active-drag implementations; use Ended / Canceled for cleanup or release-time logic.
• TouchData.position is a normalized Vector2f with (0,0) = top-left and (1,1) = bottom-right. Pass it directly to TouchUtils.isScreenPointOnImage — no axis-flipping.
• GestureInfo.endPoint is the normalized 0-1 point where the gesture ended (or is currently). Always populated, on every gesture type.
• GestureInfo.startPoint is the gesture's origin — only valid for Drag and Drop. Used here to test "did the drag start on DragZone?" exactly once per drag sequence.
• GestureInfo.firstTrigger is true exactly once per drag sequence — on the very first Drag event. Use it to snapshot the grab-offset and skip irrelevant drags that didn't start on your zone.
• GestureInfo.duration (LongTap only) is the press duration in milliseconds, updating each LongTap event.
• APJS.HapticsModule.triggerVibration(durationMs, strength, frequency) fires device vibration. durationMs is 10–200 (default 30), strength and frequency are 0–1 (defaults 0.7 and 0.5). Throttle yourself — the demo limits haptics to once every 250 ms while a long-press is active.
• APJS.TouchUtils.isScreenPointOnImage(point, image) is the hit-test helper. Pass the raw touchInfo.position or gestureInfo.endPoint and the Image component — no coordinate conversion needed, the helper handles every layout case.

Customize

On GameController → GestureLab:

• hapticDurationMs (default 30) — vibration pulse length per fire. Must be 10–200; the engine clamps outside that range.
• hapticIntervalMs (default 250) — minimum gap between consecutive haptics during a long-press. Lower for buzzier feel, higher for a single soft confirmation.

Per-zone tweaks (no script changes needed):

• TapZone / DragZone / HoldZone / RawZone color — drop in any hue via the inspector's Image.color.
• Zone label fontSize / bold / color — tune in the inspector; the script only writes Text.text.

Suggestions for further play:

• Add a 5th gesture: subscribe to a custom multi-finger pinch pattern using two Touch.Moved events and dot-product the velocities. The raw Touch emitter is the right tool for that.
• Replace the snap-back lerp with a Tween on ScreenTransform.anchoredPosition (see the TweenAnimation reference for the Tween primitives, currently grouped under Post-Process).
• Combine with the Audio tutorial: play a pop SFX on every Tap, a low buzz on every LongTap — gives the haptic feedback an audible companion.

What you learned

This tutorial used:

• EventManager.getGlobalEmitter() + EventType.Touch for raw finger events (Began, Moved, Ended, Canceled).
• EventManager.getGestureEmitter() + GestureType.{Tap, LongTap, Drag, Drop} for semantic gestures.
• TouchData — position (normalized 0-1, top-left origin), phase.
• GestureInfo — startPoint, endPoint, firstTrigger, duration.
• TouchUtils.isScreenPointOnImage for zone-based hit-testing on either a TouchData position or a GestureInfo endPoint.
• HapticsModule.triggerVibration for tactile feedback, throttled by elapsed time.
• Lazy unsubscribe in onDestroy — the symmetrical .off(...) pattern matters because the emitters outlive the script's lifecycle.

Read the full EventManager reference, the EventType, IEvent, and IEventEmitter references; the TouchData, TouchPhase, and TouchUtils for raw input; the GestureInfo and GestureType for semantic gestures; the HapticsModule for vibration; and the Events & Input namespace overview.

For UI-side hit-testing patterns and ScreenTransform layout, see the 2D / UI tutorial.
