Decorators: Inspector Component Starter

The same demo project as the Script Base tutorial, viewed through the Inspector-design lens. The component turns plain serialized fields into creator-friendly controls with headers, tooltips, constrained numbers, conditional fields, and read-only runtime state.

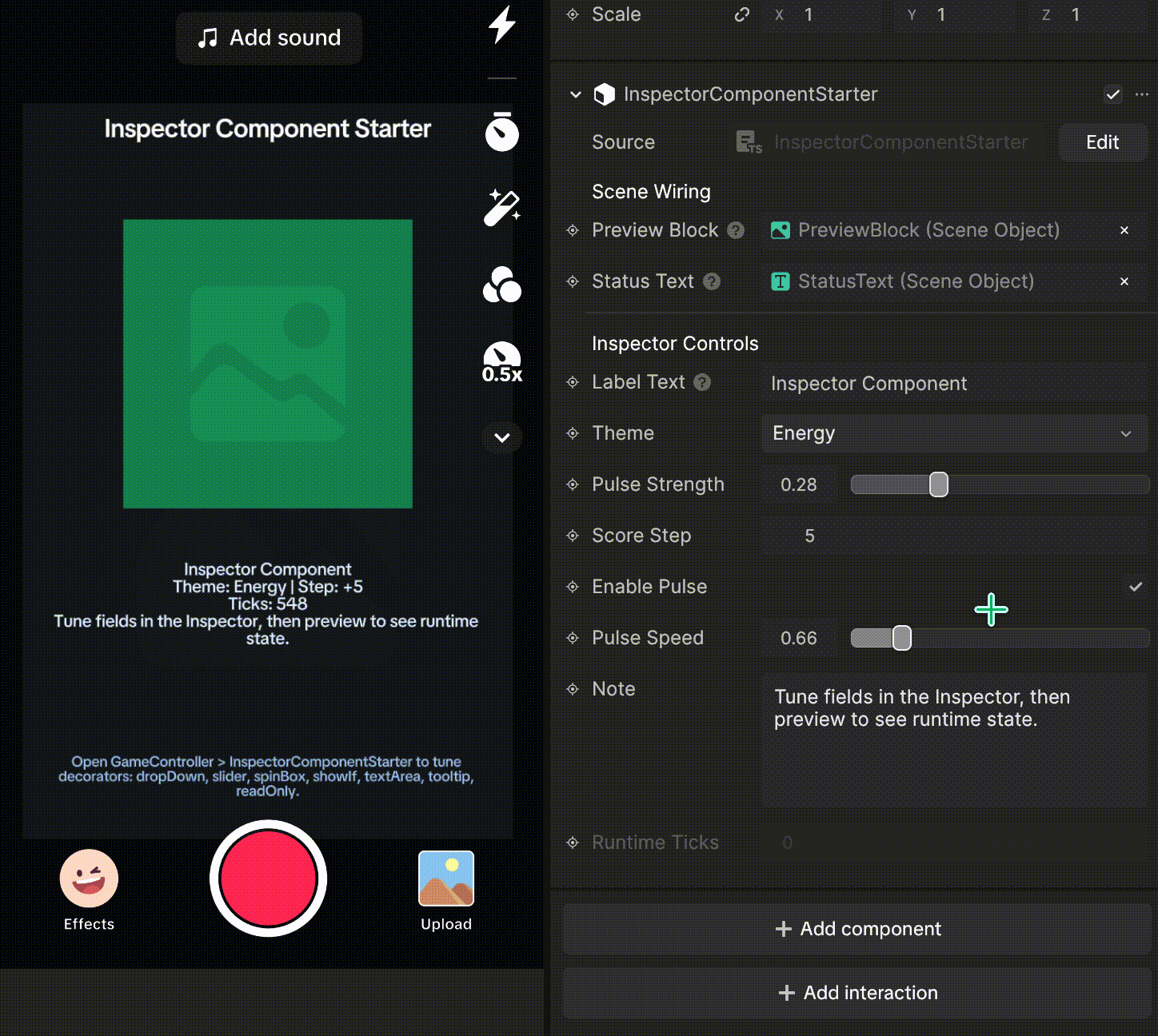

Decorator controls in the Inspector Component Starter demo

What you'll build

A script component with two serialized SceneObject references.
A grouped Inspector section for live tuning.
A numeric dropdown for theme presets.
Sliders and spin boxes that constrain user input.
A showIf field that appears only when pulse animation is enabled.
A multiline note field and a read-only runtime tick counter.

Open the demo

↓ inspector-component-starter.zip

Open GameController > InspectorComponentStarter in the Inspector. Tune the fields, then run preview to see the StatusText readout and the pulsing PreviewBlock react to those values.

Decorator block

`InspectorComponentStarter.ts`

@component()
export class InspectorComponentStarter extends APJS.BasicScriptComponent {
  @header("Scene Wiring")
  @serializeProperty()
  @tooltip("Screen Image object that this component animates.")
  previewBlock!: APJS.SceneObject;

  @serializeProperty()
  @tooltip("2D Text object used as a live runtime readout.")
  statusText!: APJS.SceneObject;

  @separator()
  @header("Inspector Controls")
  @serializeProperty()
  @tooltip("Text shown in the runtime HUD.")
  labelText: string = "Inspector Component";

  @serializeProperty()
  @dropDown([
    ["Calm", 0],
    ["Energy", 1],
    ["Warning", 2],
  ])
  theme: number = 1;

  @serializeProperty()
  @slider(0, 1, 0.01)
  pulseStrength: number = 0.32;

  @serializeProperty()
  @spinBox(1, 10, 1)
  scoreStep: number = 3;

  @serializeProperty()
  enablePulse: boolean = true;

  @serializeProperty()
  @showIf("enablePulse", true)
  @slider(0.25, 3, 0.05)
  pulseSpeed: number = 1.2;

  @serializeProperty()
  @textArea(3)
  note: string = "Tune fields in the Inspector, then preview to see runtime state.";

  @serializeProperty()
  @readOnly()
  runtimeTicks: number = 0;
}

Why each decorator is here

@component() registers the class as a script component type that can be attached to a SceneObject.
@serializeProperty() exposes a field in the Inspector and lets the editor persist it.
@header() and @separator() make long components easier to scan.
@tooltip() explains a field without adding extra objects to the scene.
@dropDown() is good for named presets that map to stable string or number values.
@slider() is best for continuous values like pulse strength and pulse speed.
@spinBox() is best for discrete values like score increments.
@showIf() keeps dependent controls hidden until they matter.
@textArea() gives authors room for multiline text.
@readOnly() exposes runtime state without inviting manual edits.

Runtime usage

The script reads the decorated fields like normal TypeScript properties:

const pulse = this.enablePulse
  ? 1 + Math.sin(this.elapsed * this.pulseSpeed * 6.28318) * this.pulseStrength
  : 1;

this.status.text =
  this.labelText +
  "\nTheme: " + this.themeName() +
  " | Step: +" + this.scoreStep +
  "\nTicks: " + this.runtimeTicks +
  "\n" + this.note;

Decorators shape the editor experience; they do not require a special runtime read API. Once the project is running, the fields are just properties on the component instance.
