Material

Type	Name	Interface Description
Variables	mainPass: Pass	The first Pass.

Example

const mainPass = material.mainPass;

Use Case

@customNode()
export class Use Case_Material_mainPass extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @output()
  info: string;

  execute() {

    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    const mainPass = material.mainPass
    this.info = `
depthTest: ${mainPass.depthTest}
depthWrite: ${mainPass.depthWrite}
depthFunction: ${mainPass.depthFunction}
colorMask: ${mainPass.colorMask}
cullMode: ${mainPass.cullMode}
stencilState.enable: ${mainPass.stencilState.enable}
stencilStat.failOperation: ${mainPass.stencilState.failOperation}
stencilStat.passOperation: ${mainPass.stencilState.passOperation}
stencilStat.compareFunction: ${mainPass.stencilState.compareFunction}
stencilStat.readMask: 0x${mainPass.stencilState.readMask.toString(16).toUpperCase()}
stencilStat.writeMask: 0x${mainPass.stencilState.writeMask.toString(16).toUpperCase()}
stencilStat.referenceValue: 0x${mainPass.stencilState.referenceValue.toString(16).toUpperCase()}
`
  }
}

Type	Name	Interface Description
Variables	passes: Pass[]	Pass List

Example

const passes = material.passes;
const pass0 = passes[0];

Use Case

@customNode()
export class Use Case_Material_passes extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @output()
  info: string;

  execute() {

    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    const passes = material.passes
    const pass0 = passes[0]
    this.info = `
passes.length: ${passes.length}
depthTest: ${pass0.depthTest}
depthWrite: ${pass0.depthWrite}
depthFunction: ${pass0.depthFunction}
colorMask: ${pass0.colorMask}
cullMode: ${pass0.cullMode}
stencilState.enable: ${pass0.stencilState.enable}
stencilStat.failOperation: ${pass0.stencilState.failOperation}
stencilStat.passOperation: ${pass0.stencilState.passOperation}
stencilStat.compareFunction: ${pass0.stencilState.compareFunction}
stencilStat.readMask: 0x${pass0.stencilState.readMask.toString(16).toUpperCase()}
stencilStat.writeMask: 0x${pass0.stencilState.writeMask.toString(16).toUpperCase()}
stencilStat.referenceValue: 0x${pass0.stencilState.referenceValue.toString(16).toUpperCase()}
`
  }
}

Type	Name	Interface Description
Variables	renderQueue: number	Rendering order value. The smaller the value, the earlier the rendering; conversely, the larger the value, the later the drawing.

Example

material.renderQueue = 2;

Use Case

@customNode()
export class Use Case_Material_getTexture extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @input('int')
  renderQueue: number = -1;

  @output()
  output: string;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    if (this.renderQueue >= 0)
      material.renderQueue = this.renderQueue;
    this.output = `renderQueue: ${material.renderQueue}`;
  }
}

Type	Name	Interface Description
Functions	clone(): Material	Material Clone

Example

const newMaterial = srcMaterial.clone();

Use Case

@customNode()
export class Use Case_Material_clone extends BasicScriptNode{

  @input()
  source: APJS.SceneObject;

  @input()
  target: APJS.SceneObject;

  execute() {
    const srcRenderer = this.source.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!srcRenderer)
      return;
    const srcMaterial = srcRenderer.mainMaterial;
    if (!srcMaterial)
      return;

    const tarRenderer = this.target.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!tarRenderer)
      return;

    tarRenderer.mainMaterial = srcMaterial.clone();
  }
}

Type	Name	Interface Description
Functions	setFloat(name: string, value: number): void	Set the Float property of the material. Currently, the name of uniform can only be obtained through third-party software such as BlenderLender.

Type

Name

Interface Description

Functions

setFloat(name: string, value: number): void

Set the Float property of the material.

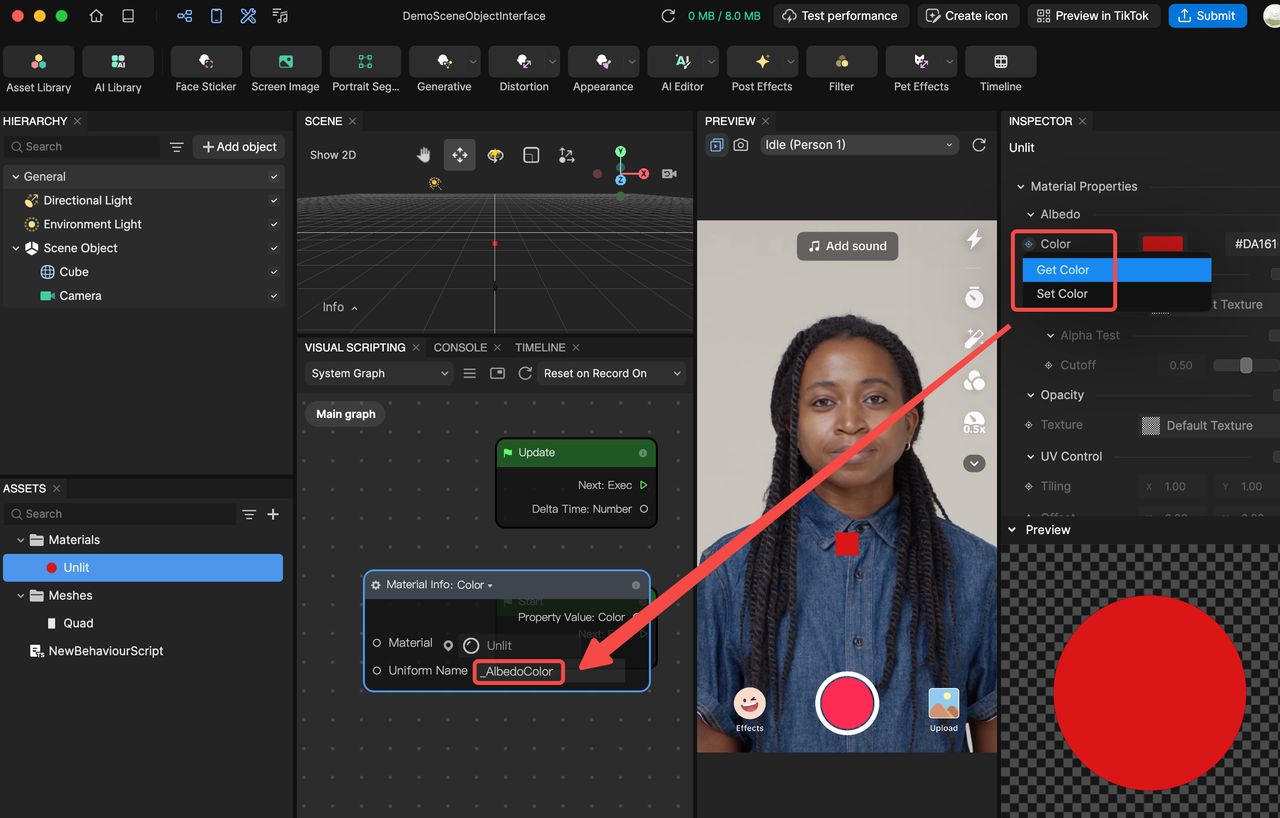

Currently, the name of uniform can only be obtained through third-party software such as BlenderLender.

setfloat example

Example

material.setFloat('_Custom_Float', 0.1);

Use Case

@customNode()
export class Use Case_Material_setFloat extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @input()
  propertyFloatValue: number;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    material.setFloat('_Custom_Float', this.propertyFloatValue);
  }
}

Type	Name	Interface Description
Functions	setVector(name:string, value: Vector2\|Vector3\|Vector4): void	Set the Vector property of the material

Example

material.setVector('_Custom_Vec2', new APJS.Vector2f(1.0, 1.0));

Use Case

@customNode()
export class Use Case_Material_setVector extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @input()
  propertyVector2f: APJS.Vector2f;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    material.setVector('_Custom_Vec2', this.propertyVector2f);
  }
}

Type	Name	Interface Description
Functions	setColor(name:string, value: Color): void	Set the Color property of the material

Example

material.setColor('_Custom_Color', new APJS.Color(1.0, 0.0, 0.0, 1.0));

Use Case

@customNode()
export class Use Case_Material_setColor extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @input()
  propertyColor: APJS.Color;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    material.setColor('_Custom_Color', this.propertyColor);
  }
}

Type	Name	Interface Description
Functions	setMatrix(name:string, value:Matrix4x4): void	Set the Color property of the material

Example

const mat = new APJS.Matrix4x4f();
material.setMatrix('_Custom_Mat4', mat);

Use Case

@customNode()
export class Use Case_Material_setMatrix extends BasicScriptNode{

  readonly Deg2Rad:number = Math.PI / 180.0;

  @input()
  sceneObject: APJS.SceneObject;

  @input()
  position: APJS.Vector3f;
  @input()
  eulerAngles: APJS.Vector3f;
  @input()
  scale: APJS.Vector3f;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    const mat = new APJS.Matrix4x4f();
    const radEulerAngles = this.eulerAngles.clone().multiplyScalar(Math.PI / 180.0);
    mat.compose(
      this.position,
      APJS.Quaternionf.makeFromEulerAngles(radEulerAngles),
      this.scale);
    material.setMatrix('_Custom_Mat4', mat);
  }
}

Type	Name	Interface Description
Functions	setTexture(name:string, texture:Texture):void	Set the Texture property of the material

Example

material.setTexture('_Custom_Sampler2D', tex);

Use Case

@customNode()
export class Use Case_Material_setTexture extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @input()
  propertyTextures: APJS.Texture[];

  @input('int')
  index: number;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    material.setTexture('_Custom_Sampler2D', this.propertyTextures[
      Math.abs(Math.floor(this.index)) % this.propertyTextures.length]);
  }
}

Type	Name	Interface Description
Functions	getFloat(name:string):number \| undefined	Get the Float property of the material

Example

const value = material.getFloat('_Custom_Float');

Use Case

@customNode()
export class Use Case_Material_getFloat extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @output()
  result: string;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    const value = material.getFloat('_Custom_Float');
    this.result = `Float: ${value}`;
  }
}

Type	Name	Interface Description
Functions	getVector(name:string):Vector2\|Vector3\|Vector4\|undefined	Get the Vector property of the material

Example

const value = material.getVector('_Custom_Vec2');

Use Case

@customNode()
export class Use Case_Material_getVector extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @output()
  result: string;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    const value = material.getVector('_Custom_Vec2');
    this.result = `${value}`;
  }
}

Type	Name	Interface Description
Functions	getMatrix(name:string):Matrix4x4 \| undefined	Get the Matrix property of the material

Example

const eulerAngles = rotation.toEulerAngles();

Use Case

@customNode()
export class Use Case_Material_getMatrix extends BasicScriptNode{

  readonly Rad2Deg:number = 180.0 / Math.PI;

  @input()
  sceneObject: APJS.SceneObject;

  @output()
  result: string;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    const value =  material.getMatrix('_Custom_Mat4');

    const position = new APJS.Vector3f();
    const rotation = new APJS.Quaternionf();
    const scale = new APJS.Vector3f();
    value?.getDecompose(position, rotation, scale);

    const eulerAngles = rotation.toEulerAngles();
    this.result = `Position: ${position}
Euler: ${eulerAngles.multiplyScalar(this.Rad2Deg)}
Scale: ${scale}`;
  }
}

Type	Name	Interface Description
Functions	getColor(name: string): Color \| undefined	Get the Color property of the material

Example

const value = material.getColor('_Custom_Color');

Use Case

@customNode()
export class Use Case_Material_getColor extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @output()
  result: string;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    const value = material.getColor('_Custom_Color');
    this.result = `${value}`;
  }
}

Type	Name	Interface Description
Functions	getTexture(name:string):Texture \| undefined	Get the Texture property of the material

Example

const tex = material.getTexture('_Custom_Sampler2D') as APJS.Texture;

Use Case

@customNode()
export class Use Case_Material_getTexture extends BasicScriptNode{

  @input()
  sceneObject: APJS.SceneObject;

  @output()
  output: APJS.Texture;

  execute() {
    const renderer = this.sceneObject.getComponent('MeshRenderer') as APJS.MeshRenderer;
    if (!renderer)
      return;
    const material = renderer.mainMaterial;
    if (!material)
      return;
    const tex = material.getTexture('_Custom_Sampler2D') as APJS.Texture;
    console.log(`Tex: ${tex.getWidth()}`);
    this.output = tex;
  }
}

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example​

Use Case​

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case

Example

Use Case
