Class	Type	Name
StretchMode	Enum	Fit
		FitWidth
		FitHeight
		Stretch
		Fill
		FillAndCut

Class	Type	Name	Interface Description

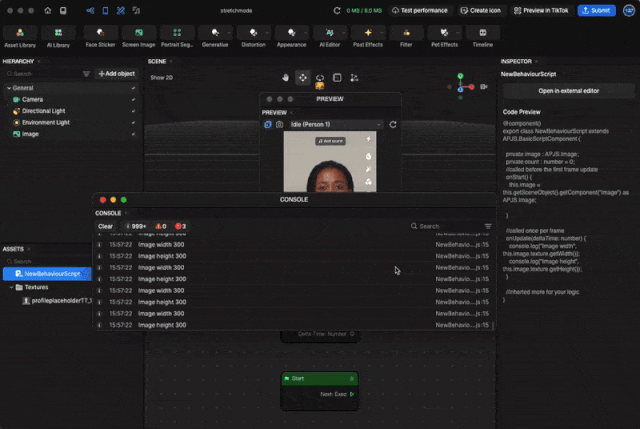

Image : Renderer	Variables	texture: Texture | null	Main Texture of Image Component

Example

const texture = image.texture;

Use Case

@component()
export class NewBehaviourScript extends APJS.BasicScriptComponent {

  private image : APJS.Image;
  private count : number = 0;
  //called before the first frame update
  onStart() {
    this.image = this.getSceneObject().getComponent("Image") as APJS.Image;

  }

  //called once per frame
  onUpdate(deltaTime: number) {
    console.log("Image width", this.image.texture.getWidth());
    console.log("Image height", this.image.texture.getHeight());
  }

  //inherted more for your logic
}

Class	Type	Name	Interface Description

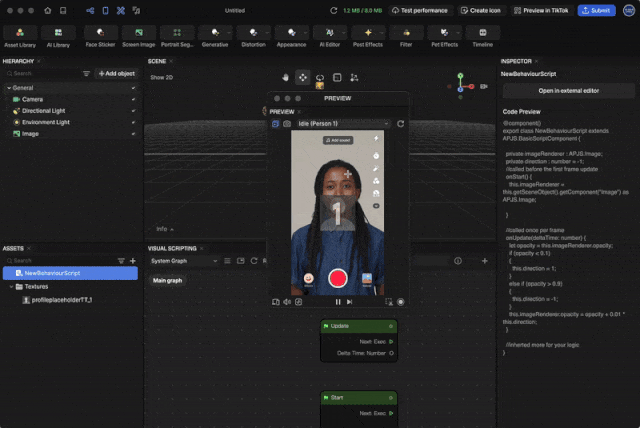

Image : Renderer	Variables	opacity: number	Transparency of Image

Example

image.opacity = 0.5;

Use Case

@component()
export class NewBehaviourScript extends APJS.BasicScriptComponent {

  private image : APJS.Image;
  private direction : number = -1;
  //called before the first frame update
  onStart() {
    this.image = this.getSceneObject().getComponent("Image") as APJS.Image;

  }

  //called once per frame
  onUpdate(deltaTime: number) {
    let opacity = this.imageRenderer.opacity;
    if (opacity < 0.1)
    {
      this.direction = 1;
    }
    else if (opacity > 0.9)
    {
      this.direction = -1;
    }
    this.image.opacity = opacity + 0.01 * this.direction;
  }

  //inherted more for your logic
}

Class	Type	Name	Interface Description

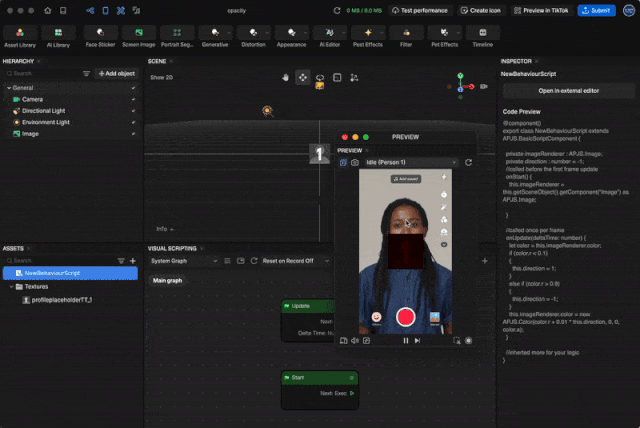

Image : Renderer	Variables	color: Color	The overlay color of Image, calculated in the shader as vec4 imageColor = baseColor u_color u_opacity

Example

image.color = new APJS.Color(1, 0, 0, 1);

Use Case

@component()
export class NewBehaviourScript extends APJS.BasicScriptComponent {

  private image : APJS.Image;
  private direction : number = -1;
  //called before the first frame update
  onStart() {
    this.image = this.getSceneObject().getComponent("Image") as APJS.Image;

  }

  //called once per frame
  onUpdate(deltaTime: number) {
    let color = this.imageRenderer.color;
    if (color.r < 0.1)
    {
      this.direction = 1;
    }
    else if (color.r > 0.9)
    {
      this.direction = -1;
    }
    this.image.color = new APJS.Color(color.r + 0.01 * this.direction, 0, 0, color.a);
  }

  //inherted more for your logic
}

Class	Type	Name	Interface Description

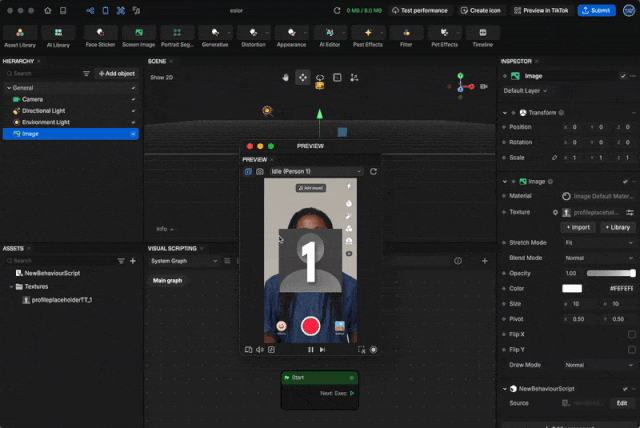

Image : Renderer	Variables	size: Vector2f	Width and height of Image

Example

image.size = new APJS.Vector2f(5, 5);

Use Case

@component()
export class NewBehaviourScript extends APJS.BasicScriptComponent {

  private image : APJS.Image;
  private direction : number = -1;
  //called before the first frame update
  onStart() {
    this.image = this.getSceneObject().getComponent("Image") as APJS.Image;

  }

  //called once per frame
  onUpdate(deltaTime: number) {
    let size = this.imageRenderer.size;
    if (size.x < 10)
    {
      this.direction = 1;
    }
    else if (size.x > 20)
    {
      this.direction = -1;
    }
    this.image.size = new APJS.Vector2f(size.x + 0.1 * this.direction, size.y + 0.1 * this.direction);
  }

  //inherted more for your logic
}

Class	Type	Name	Interface Description

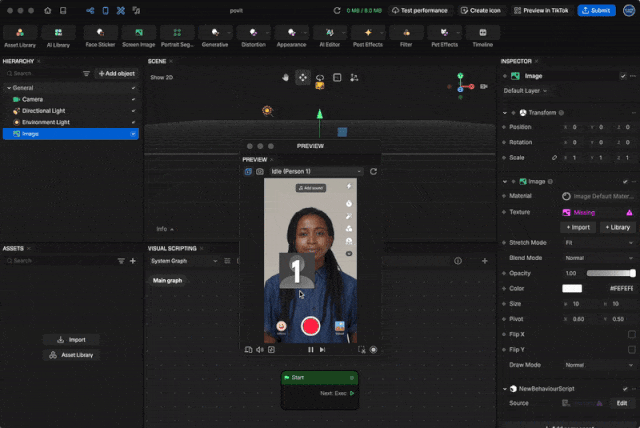

Image : Renderer	Variables	pivot: Vector2f	Rotation point of Image

Example

image.pivot = new APJS.Vector2f(0.5, 0.5);

Use Case

@component()
export class NewBehaviourScript extends APJS.BasicScriptComponent {

  private image : APJS.Image;
  private direction : number = -1;
  //called before the first frame update
  onStart() {
    this.image = this.getSceneObject().getComponent("Image") as APJS.Image;

  }

  //called once per frame
  onUpdate(deltaTime: number) {
    let pivot = this.image.pivot;
    if (pivot.x < 0.1)
    {
      this.direction = 1;
    }
    else if (pivot.x > 0.9)
    {
      this.direction = -1;
    }
    this.image.pivot = new APJS.Vector2f(pivot.x + 0.01 * this.direction, pivot.y + 0.01 * this.direction);
  }

  //inherted more for your logic
}

Class	Type	Name	Interface Description

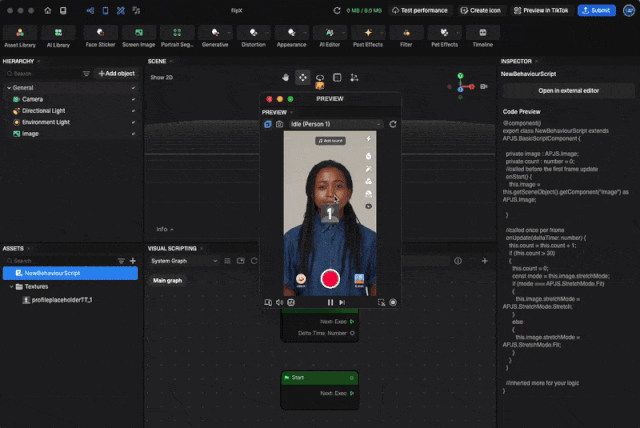

Image : Renderer	Variables	stretchMode: ImageStretchMode	Texture Fill Mode for Image's Size Area

Example

image.stretchMode = APJS.StretchMode.Stretch;

Use Case

@component()
export class NewBehaviourScript extends APJS.BasicScriptComponent {

  private image : APJS.Image;
  private count : number = 0;
  //called before the first frame update
  onStart() {
    this.image = this.getSceneObject().getComponent("Image") as APJS.Image;

  }

  //called once per frame
  onUpdate(deltaTime: number) {
    this.count = this.count + 1;
    if (this.count > 30)
    {
      this.count = 0;
      const mode = this.image.stretchMode;
      if (mode === APJS.StretchMode.Fit)
      {
        this.image.stretchMode = APJS.StretchMode.Stretch;
      }
      else
      {
        this.image.stretchMode = APJS.StretchMode.Fit;
      }
    }
  }

  //inherted more for your logic
}

Class	Type	Name	Interface Description
Image : Renderer	Variables	flipX: boolean	Whether the Image is horizontally flipped

Example

image.flipX = true;

Use Case

@component()
export class NewBehaviourScript extends APJS.BasicScriptComponent {

  private image : APJS.Image;
  private count : number = 0;
  //called before the first frame update
  onStart() {
    this.image = this.getSceneObject().getComponent("Image") as APJS.Image;

  }

  //called once per frame
  onUpdate(deltaTime: number) {
    this.count = this.count + 1;
    if (this.count > 30)
    {
      this.count = 0;
      this.image.flipX = !this.imageRenderer.flipX;
    }
  }

  //inherted more for your logic
}

Class	Type	Name	Interface Description

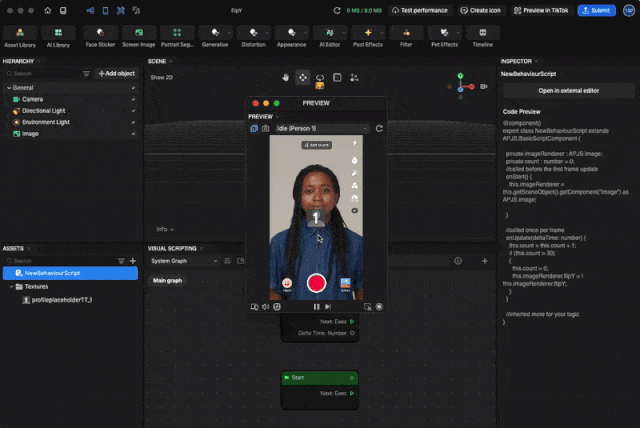

Image : Renderer	Variables	flipY: boolean	Whether the Image is vertically flipped

Example

image.flipY = true;

Use Case

@component()
export class NewBehaviourScript extends APJS.BasicScriptComponent {

  private image : APJS.Image;
  private count : number = 0;
  //called before the first frame update
  onStart() {
    this.image = this.getSceneObject().getComponent("Image") as APJS.Image;

  }

  //called once per frame
  onUpdate(deltaTime: number) {
    this.count = this.count + 1;
    if (this.count > 30)
    {
      this.count = 0;
      this.image.flipY = !this.imageRenderer.flipY;
    }
  }

  //inherted more for your logic
}
