AR Camera

Use AR Camera to place a camera in your project to view the scene you have created. Use the camera properties to customize the view and tracking in space or on a surface.

↓ UFO-assets.zip

Let’s create an effect where UFOs float in the air.

Add an AR Camera Object

Add an AR Camera object by going to the Hierarchy panel and clicking + Add object > AR Tracking > AR Camera. Doing so will automatically generate an AR camera equipped with the Device Tracker component. See the Camera guide for more details on the properties.

Tip
Tip

When creating the AR camera, remember to delete the default Camera if you don’t need it.

Configure Device Tracker of the AR Camera object

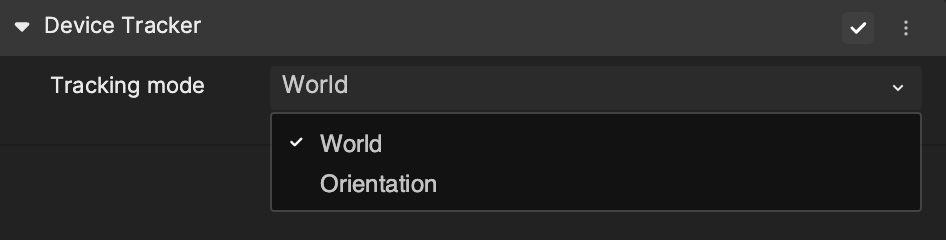

Select the AR Camera object. Navigate to the Device Tracker component attached to the camera in the Inspector panel. Set the Tracking mode of the Device Tracker component to World. This will ensure that all the objects that are rendered by the AR camera will be tracked in the world. You will be able to hold the device and move around freely.

Device Tracker Properties

The Device Tracker component obtains the rotation and position of your phone. It can be used to create AR environment experiences like placing a 3D character/object on the ground or adding a drone to make it fly in the air.

Tracking mode:

  • World: Support 6 DoF (degrees of freedom) in space, which means it will capture the position and orientation of the phone in world space. Use this mode when you want to position the object at a specific location in the world.
  • Orientation: Support 3 DoF (degrees of freedom) in space, which means it will detect orientation but not position in world space for the device. The objects will keep the same relative position as the camera, so you can’t walk close to or far from the objects you placed.

Place Your 3D Object in the World Space

Import 3D Assets

Download the UFO assets and import them into Effect House to get started.

↓ UFO-assets.zip

Add Imported 3D Assets to the Scene

Drag the UFO Model to the Hierarchy panel.

Set up the Transform of the Object

Let’s set up the scale of the UFO to match the real-world unit. Create an empty scene object by clicking + Add object > Create empty. Let’s rename the empty scene object to AR container. Set up the scale of the AR container to (0.05, 0.05, 0.05).

unaligned-image-0
unaligned-image-1

Then drag the UFO model underneath the AR container and set the scale of the UFO to (1, 1, 1).

Tip
Tip

Since the scale ratio between the 3D scene of Effect House and real-world is 20:1. We create the AR container with the scale of 0.05 to match the unit in the real world.

Set up the position and rotation of the object as you want.

Preview Your AR Effect on TikTok

To better preview AR effects, click on the Preview in TikTok button, and scan the QR code to test your effect out.
