Pet Face Keypoint Live Demo

In this demo, you are going to use the Pet Face Info node introduced in Effect House 1.6.0.

Final graph

This is the result you want to obtain by the end of this demo.

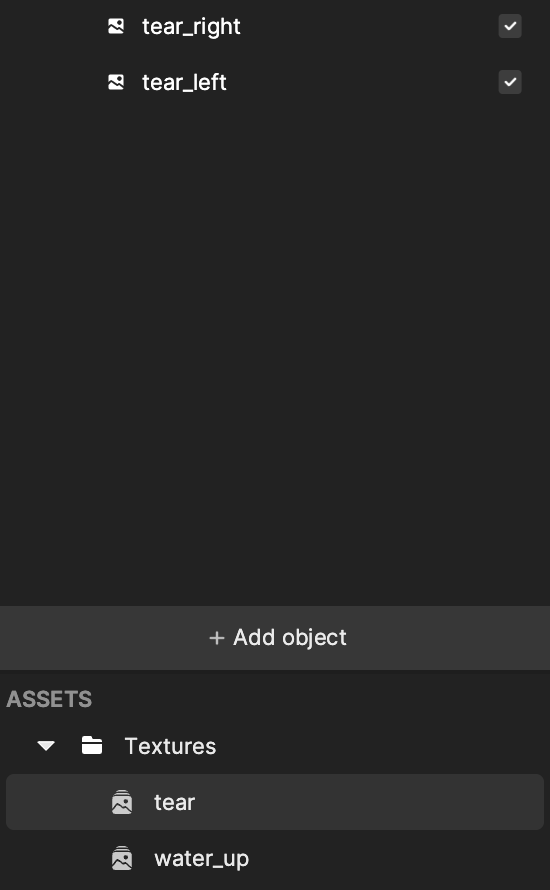

1. Import a Texture Sequence and change the name.

Download the following assets file:

↓assets.zip

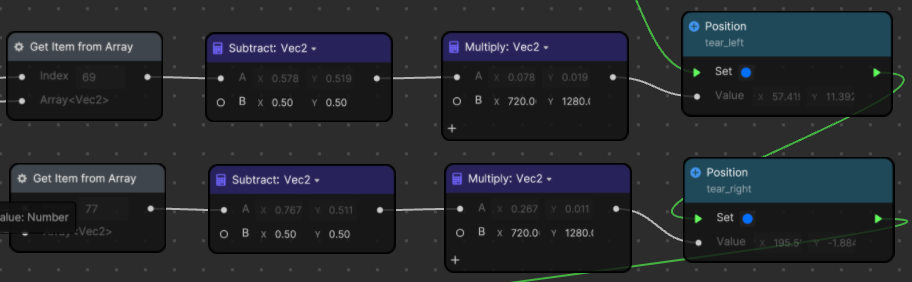

2. Set the position for the tears by converting them into screen space coordinates.

The 2D coordinates for the cat’s left and right eyes have been pulled from the Array output.

As these coordinates are normalized, they’ve been multiplied by the Canvas resolution to convert them into screen space coordinates.

Learn more about the Pet Face Info node.

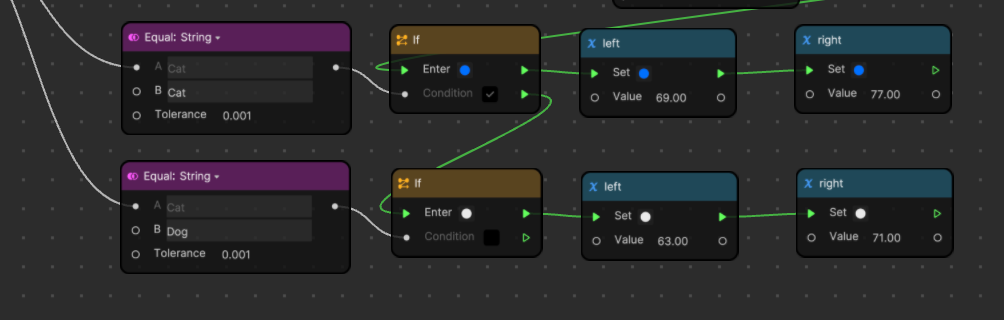

3. Use Equal to customize the dog and set variables.

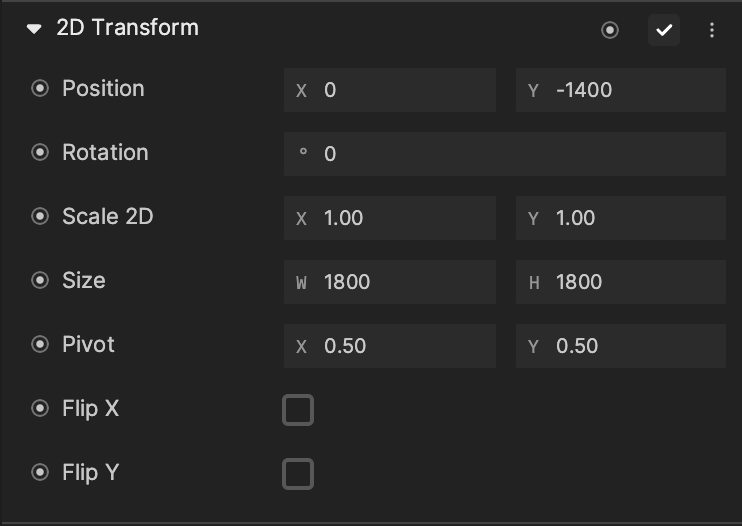

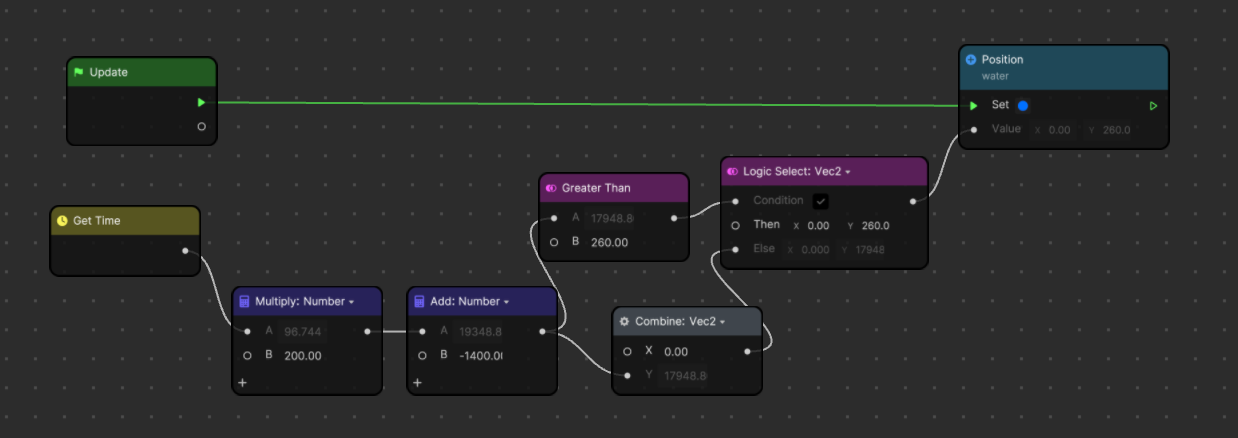

4. Set the water level by using Logic Select.

5. Final package.

Download the following file:

↓CryingPetDemo.zip
