Customize Render Texture

Render Texture is a texture that shows what the camera is looking at. You can apply this texture to an image or use it as a normal texture resource.

In the Demo Effect section, you will learn how to create an effect with brush strokes. Download the following file to get started:

↓ camera_render_texture_brush_effect.zip

Built-In Render Texture

The default Camera object in the scene uses a built-in render texture called Final Render Output. This render texture uses the webcam video frame by default, so it shows what the webcam or the phone camera is viewing.

Tip

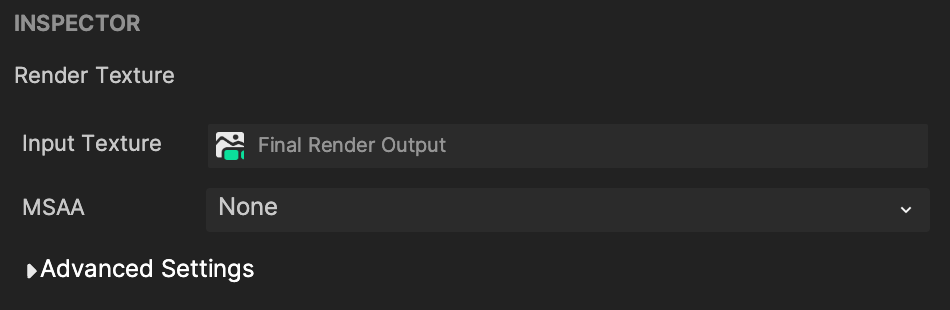

What you see in the Preview panel matches the Final Render Output render texture.

Create a Render Texture

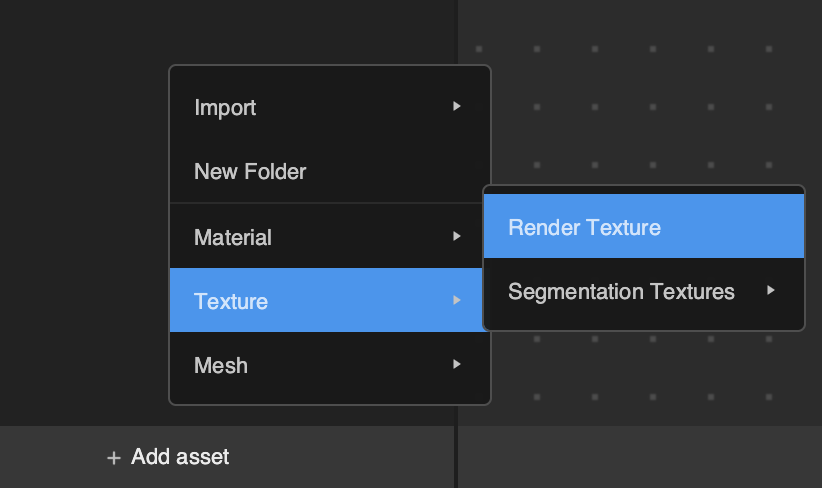

You can create a new Render Texture by clicking the Add button [+] > Texture > Render Texture in the Assets panel.

Apply a Render Texture to a Camera

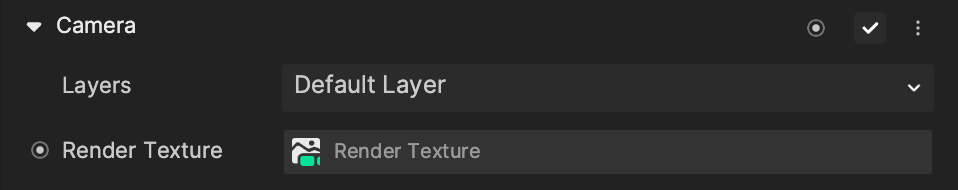

Drag the newly created Render Texture from the Assets panel to the Camera component’s Render Texture property in the Inspector panel. This render texture shows what this camera is viewing right now.

Display Render Texture On an Image

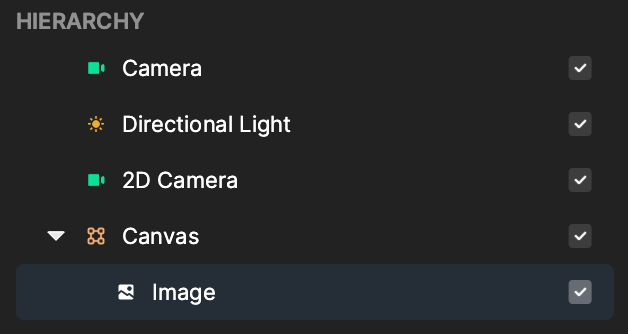

To display the camera’s view, you can create an image by clicking the Add button [+] > 2D > Image in the Hierarchy panel.

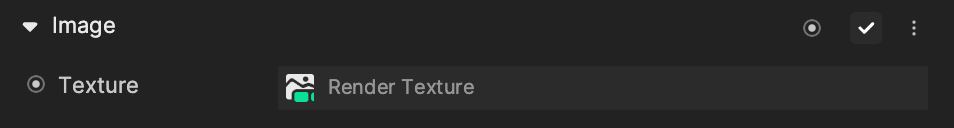

Select the Image and navigate to the Inspector panel. Then change its Texture property to the render texture you assigned to the Camera object.

You should notice that the image seems to have disappeared from the Preview panel. This is because the render texture you created has a default Input Texture, which is the default webcam view. Now, it is the same with Final Render Output.

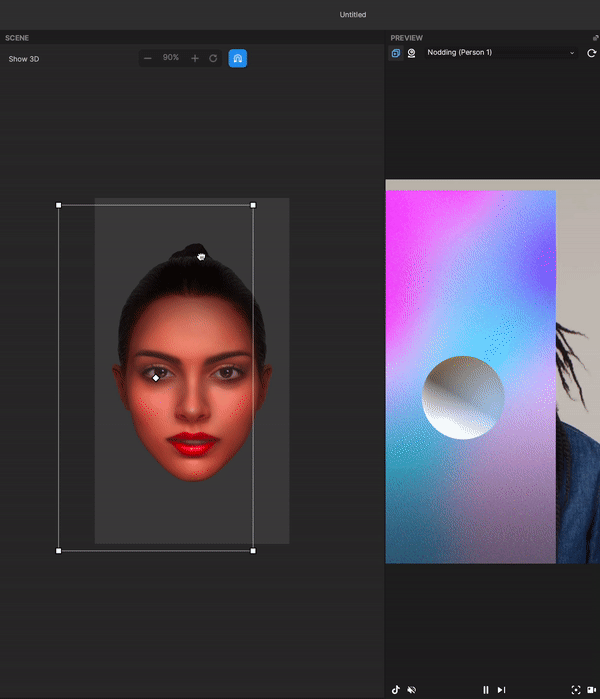

To see the difference, you can add a sphere by going to the Hierarchy panel and clicking the Add button [+] > 3D > Sphere. Add the sphere to the scene that is set up to the Layer property that the Camera (Default Layer) is taking care of, but the 2D Camera (Layer 1) is not. Now move the image around, and you’ll see the sphere is only shown in the image.

Tip

To render the camera view onto an image, you must set the Input Texture of the render texture to Final Render Output.

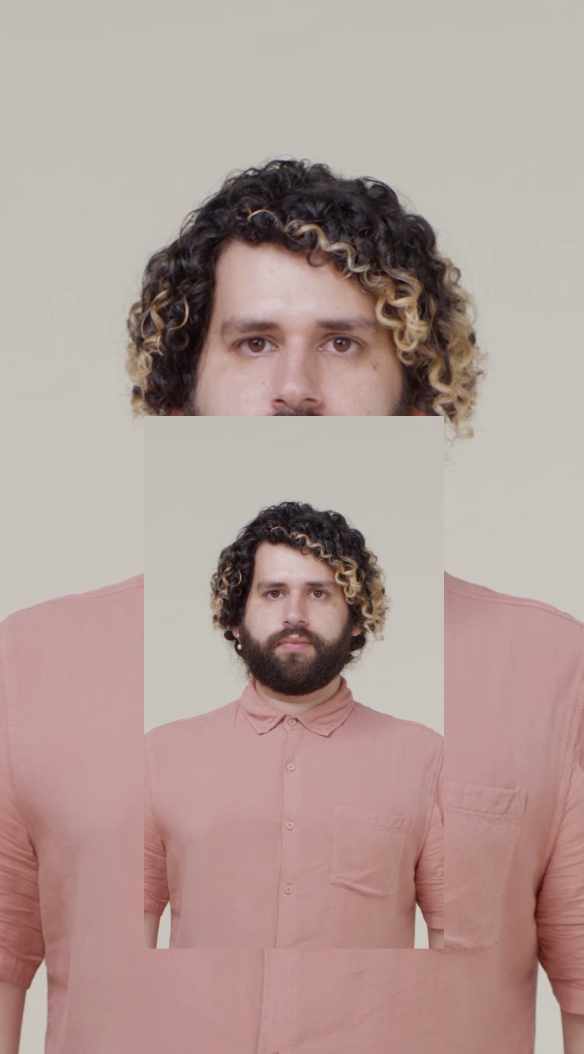

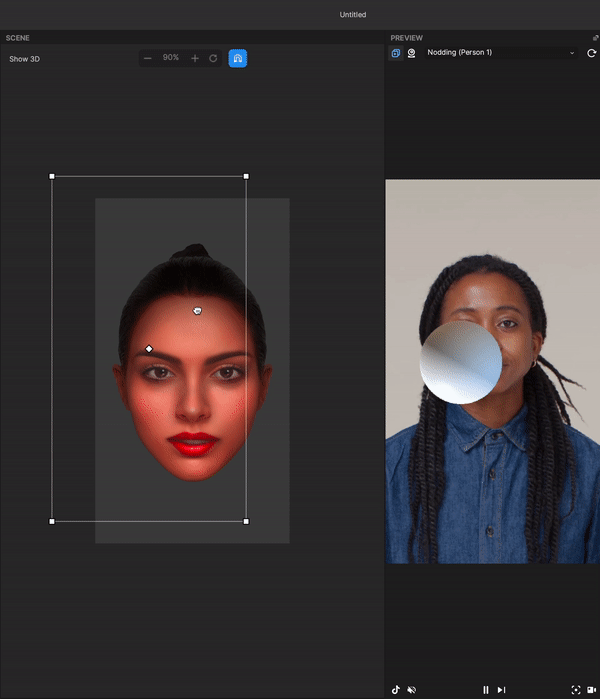

After you configure this, you’ll see the following effect:

Customize Input Texture

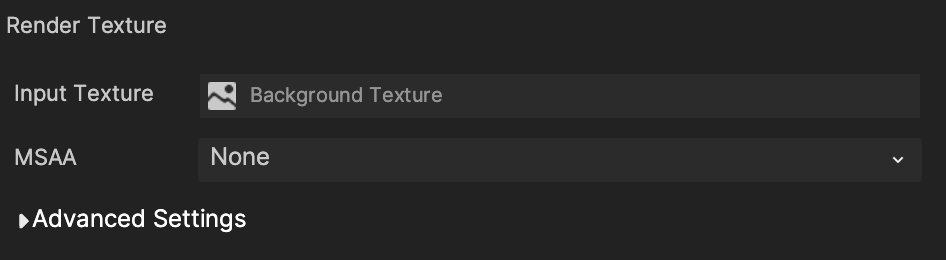

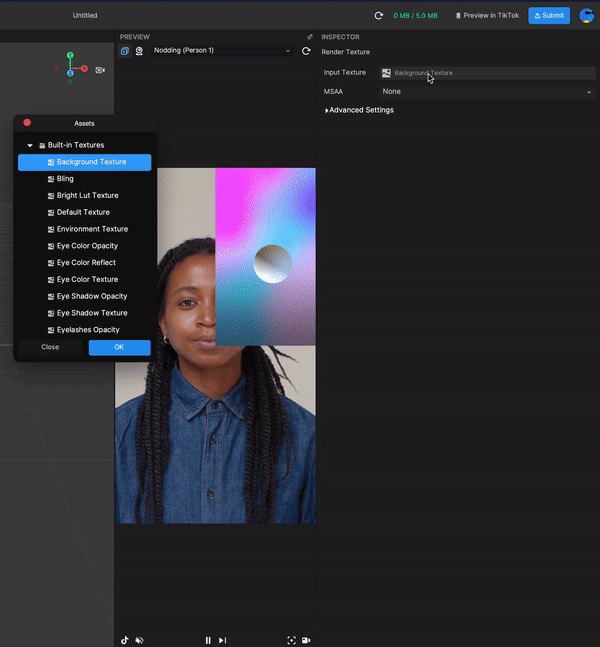

When creating a new Render Texture, it has a default Input Texture property. The default is the camera view which is shown as None. You can assign an image texture as the Input Texture to cover the original camera input. Try to replace the texture with one of the built-in textures, such as Background Texture.

You should see the image rendering the Background Texture below the virtual object now. You can resize the image and move it around.

You can also use Input Texture with transparency to allow the camera view to show instead of fully covering the camera rendering.

Fill Render Texture With Color

Customize a Camera’s Clear Type and Clear Color

In addition to replacing the camera view with an image, you can also fill the render texture with a solid color.

Select the camera in the Hierarchy panel. Navigate to the Inspector panel and set Clear Type of the Camera component to one of the following:

• Color
• Color Depth
• Color Depth Stencil

The render texture of the camera will be filled by the configured Clear Color property. Learn more about the Clear Type property.

Demo Effect: Brush

In this demo, you will create a brush-stroke effect.

If you haven’t already, download the following file:

↓ camera_render_texture_brush_effect.zip

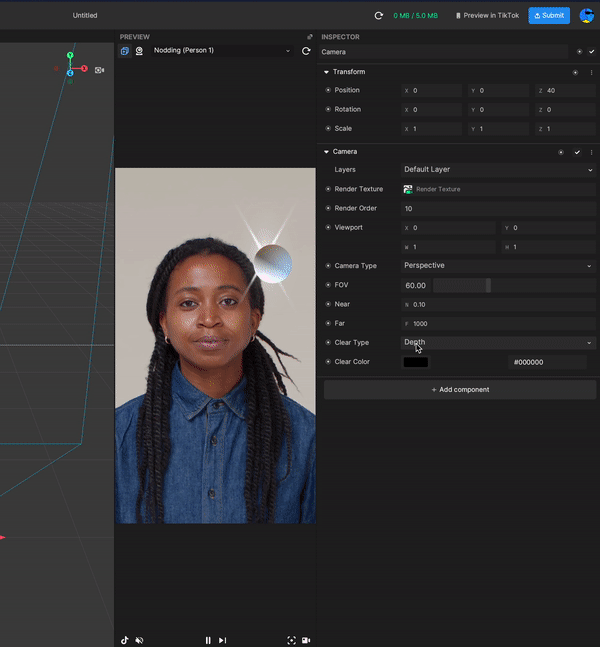

Keep the Input Texture of the Render Texture as None. Set the Clear Type of the Camera component to Depth, Don’t, or Depth Stencil.

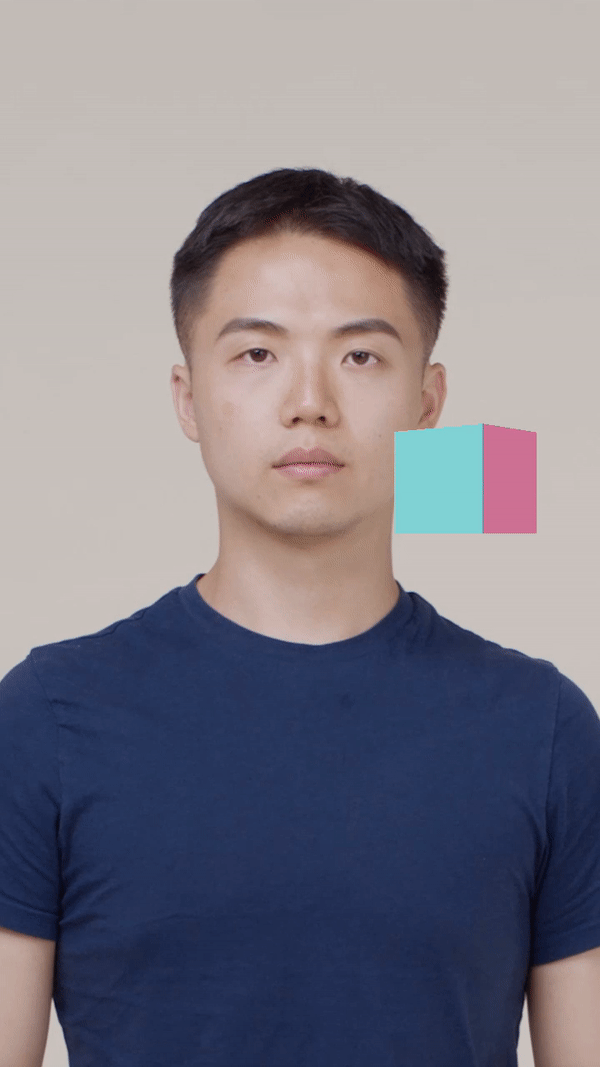

Then drag the cube you created in the scene. You will see the movement trails stay on the render texture.

Tip

If you set the Clear Type of the Camera component to Depth, Don’t, or Depth Stencil, you can see these trails.

To understand the Clear Type differences between Depth and Don’t, put a plane intersecting with the cube, and then move the cube through the plane.

If you set the Clear Type of the Camera component to Don’t, you can see that when the cube intersects with the plane, there is a movement trail because the Don’t option does not clears the depth buffer from a previous render texture.

If you set the Clear Type of the Camera component to Depth, you can see that when the cube intersects with the plane, there is no movement trail because the Depth option clears the depth buffer from a previous render texture.

It will recalculate the depth between intersected objects and then redraw the new render texture.

Render Texture Properties

Input Texture: Use the original web camera or device camera view as the input, which is the default, or assign a texture to render the virtual scene with the original camera render.

Tip

If the Clear Type of the Camera component assigned with this render texture has been set to Color, Color Depth, Color Depth Stencil, the render texture of the camera will be filled by the configured Clear Color property.

MSAA: Multisample anti-aliasing (MSAA) is a type of spatial anti-aliasing. This is a process for reducing aliasing at the edges of rasterized primitives. Choose None of 4X.

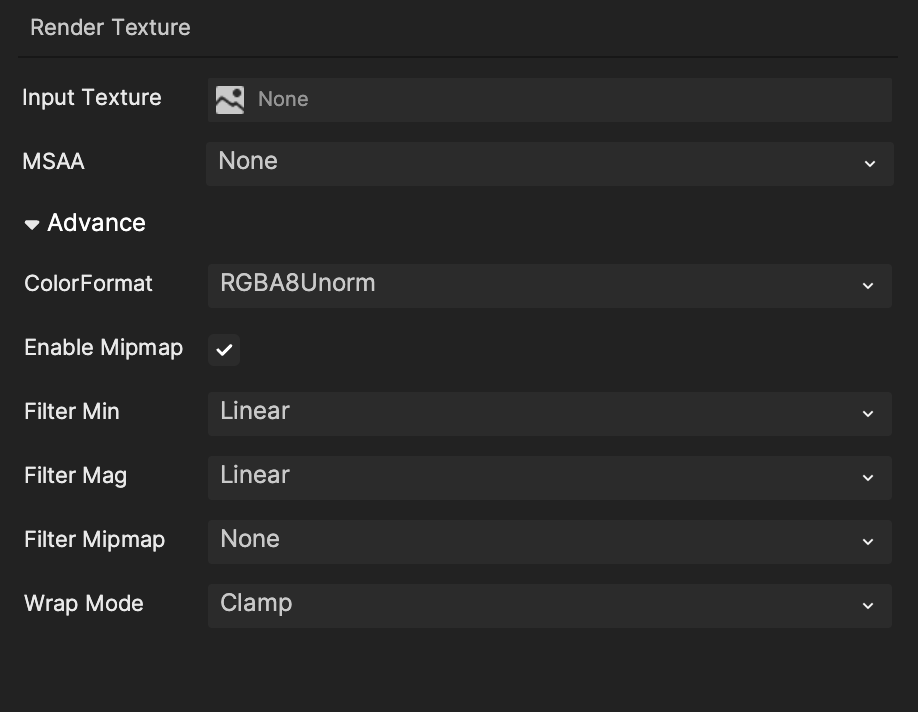

Advanced Settings

Color Format: The color format of the render texture. This property determines how colors get stored. Each color has a red (R), blue (B), and green (G) channel, and maybe an alpha channel.

• RGB16Sfloat
• RGB32Sfloat
• RGB8Unorm
• RGBA16Sfloat
• RGBA32Sfloat
• RGBA8Unorm (Default)

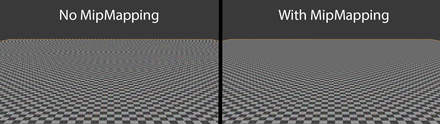

Enable Mipmap: When rendering textured objects in 3D scenes, a graphics processing unit (GPU) can use different approaches to determine how much of a texture’s detail is visible to the camera. Mipmaps are commonly used for rendering textured objects based on their distance from the camera to achieve a good balance between quality and performance. If selected:

• Filter Min
  • Linear (Default)
  • Nearest
• Filter Mag
  • Linear (Default)
  • Nearest
• Filter Mipmap
  • None (Default)
  • Nearest
  • Linear
• Wrap Mode STR three values are the same.
  • Clamp (Default)
  • Repeat
  • Mirror
