Face Mask applies a 2D texture to a user’s face to create face paint or makeup effects.
You can download the following file for a face mask reference, which includes templates for the Whole face, Eyes, Eyelashes, and Lip. Use your preferred 2D design software to create your own face mask textures.
If you are using a version prior to Effect House v2.1.0, use the following template:
If you are using Effect House v2.1.0 or a later version, use the following template:
Add a Face Mask Object
Add a Face Mask object by clicking the Add button [+] > Face Effects > Face Mask in the Hierarchy panel.
You cannot modify the Transform of the Face Mask, but you can adjust its position relative to the face using the Offset of the Face Mask component.

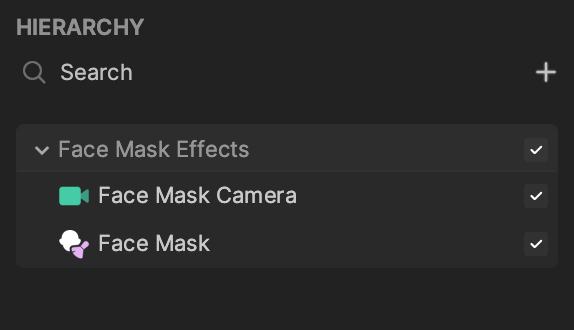

Starting in Effect House v2.0.0, the Face Mask object is automatically added to the Face Shape Effects render group in the Hierarchy panel. Learn more about render groups.
Make Your Own Face Mask Texture
If you haven’t already, download the following file for templates to create make your own face mask texture. It includes templates for the Whole face, Eyes, Eyelashes, and Lip. Be sure to test your design on all three models to ensure it compliments a variety of skin tones.
When creating a face mask effect, make sure you read our guidelines for building inclusive effects.
In Adobe Photoshop, select the artboard you want to export and go to File > Export > Artboards to Files. Change the export settings to Artboard Content Only, select the Export Selected Artboards checkbox, deselect the Include Background in Export checkbox, and change the File Type to PNG-24. Then click Run to confirm and export.
Import a Face Mask Texture
You can import the face mask texture by clicking the Add button [+] > Import > From Computer in the Assets panel. You can also simply drag the texture into the Assets panel.
Learn more about 2D Image preparation.
- Format: PNG and JPG files are supported
- Resolution limit: 1024 x 1024 pixels
- Single file size: Less than 1 MB
- Total effect package: Less than 5 MB
Configure a Face Mask Component
Change a Face Mask Type
Face Region: This property designates where the mesh will appear on the face. Chose Whole (default), Eyes, Eyelashes, or Lips.
Apply a Texture
Texture: Choose a texture from the Assets picker.
Note the size of the image you imported for the face mask. If you change the Face Region type to Eyes, Lips, or Eyelashes, make sure the size of your image is aligned with the template we provided above.
Change the Opacity and Color
Opacity Enable: Customize the Opacity Texture and Color of the mesh. This is selected by default.
- Opacity Texture: Apply an alpha mask texture to the mask. Choose a texture from the Assets picker.

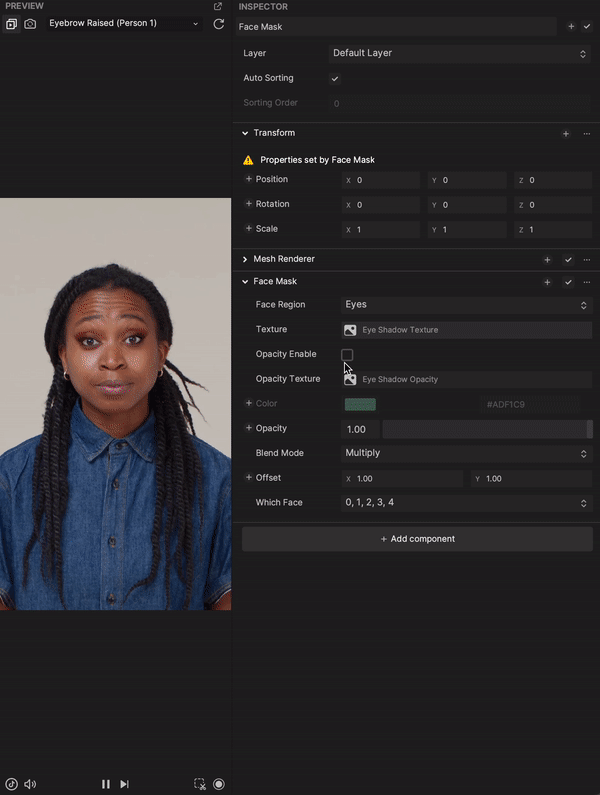

- Color: Determine the colors that will blend with the texture. For example, you can adjust the color of the eye shadow texture.
- Opacity: Use the slider to set the opacity to a value between 0 and 1, with 0 being transparent and 1 being opaque (unless the edges are feathered). The default value is 1.
Blend Mode: Determines different calculations used to blend color and texture. Choose from the following blend modes:
- Soft Light
- Color Burn
- Color Dodge
- Linear Dodge
Adjust a Face Mask’s Texture Position
Offset: Adjust the mesh position.
- X: Set the horizontal offset to a value between 0 and 1, with 0 being the most left and 2 being the most right. The default value is 1.
- Y: Set the vertical offset to a value between 0 and 1, with 0 being the most top and 2 being the most bottom. The default value is 1.
Apply a Face Mask to Multiple Faces
Which Face: Select which face the Face Mask object is applied to. Multiple selections are supported. 0 represents the first face that appears in the scene and similarly, 4 represents the fifth face that appears in the scene. All are selected by default.
Test Skin Tones in the Preview Panel
Testing Face Mask on different skin tones is recommended to ensure the effect is inclusive. You can find different media demos from the dropdown in the Preview panel.
Use Multiple Face Masks
You can apply face masks to multiple faces.
Use Which Face to designate which face a face mask applies to. You can apply different face mask textures to different people’s faces.
If you’re using multiple face masks on one person’s face, the face masks will show up by following the image’s render order.
Learn more about the render order of images.
When Face Mask(1) is on top of Face Mask, Face Mask will show in front of Face Mask(1) on the person’s face.
Projects created prior to Effect House v1.5.1 will not be able to use the Which Face property. You must add a new Face Mask component to use this function.
